Fill & Finish
The Technicon Crème Filling Cobot Solution consists of a 800 x 800 x 800 mm. Flex Module with a glass surface which makes it easy to clean and maintaining a high hygienic level.
On each module two UR7e cobots are mounted. The UR7e has a 850 mm. reach and a payload of 7,5 kg
SOLUTION OVERVIEW

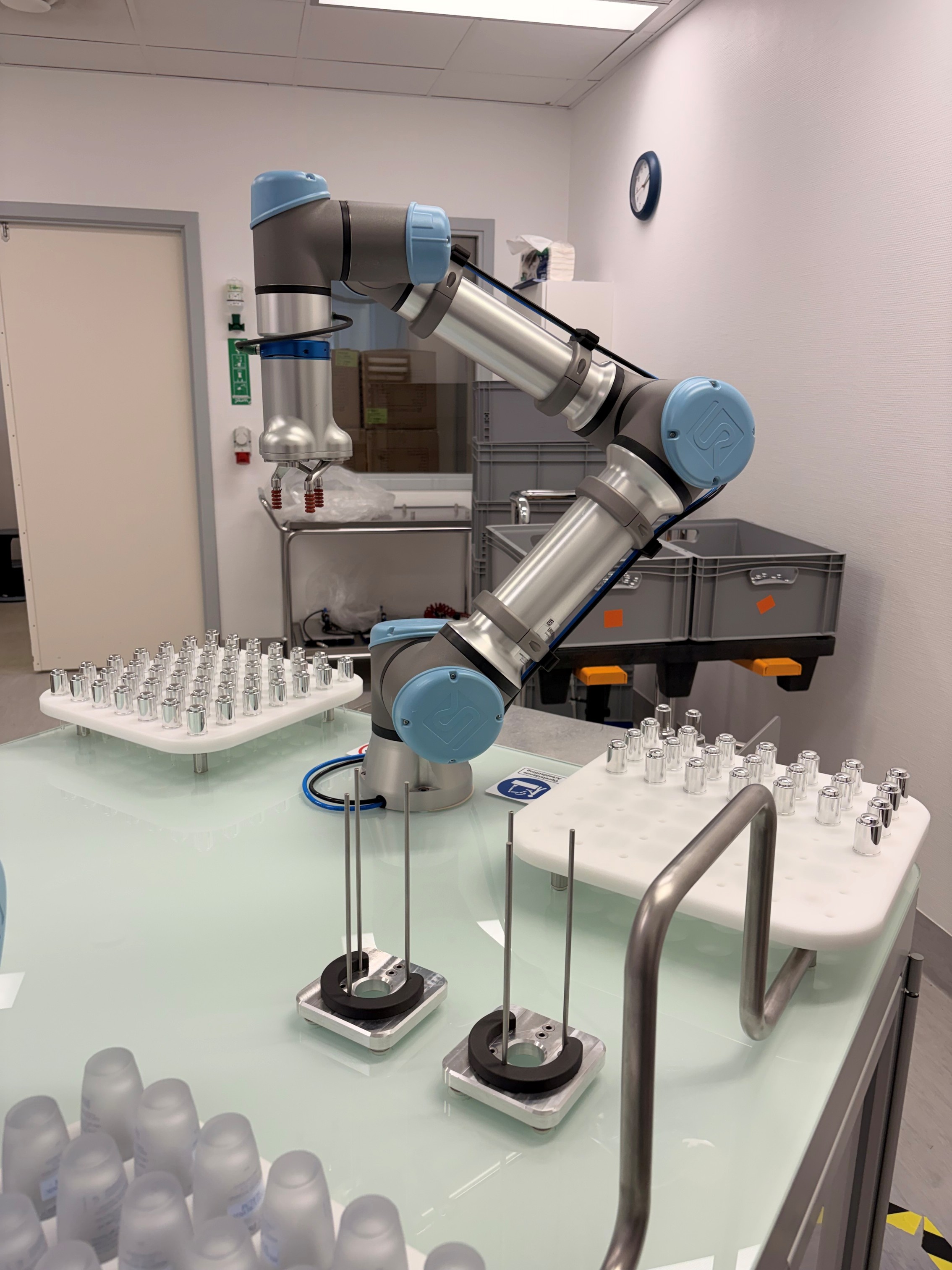

The two UR7e cobots work in close collaboration effectively handle the entire crème filling process:
One UR7e smoothly picks up an empty container from rack, effectively ensure accurate filling and the second UR7e gently add a cap to each container.
Before the second UR7e ensure that each filled container is correctly placed in a rack an integrated printer prints a batch number underneath each container. This ensures a steady flow.
Onto each UR7e a 3FG15 Gripper from OnRobot is mounted. The 3FG15 Gripper is a strong, stable gripper with 3 contact points. The 3FG15 Gripper’s accurate centric positioning drives higher quality, consistency, and output with minimal programming.
The modularity ensures a choice between a variety of different grippers. If a vacuum gripper or a 2FG Finger gripper is required for customized purposes, it is easy to swift between various grippers. This can be done within seconds by any operator.
This makes The Crème Filling Cobot Solution easy to redeploy for multiple processes, adding a high degree of flexibility to any production set up.
Due to its compactness The Crème Filling Cobot Solution is designed to optimize the utilization of limited space. The solution can easily handle a variety of containers in different sizes and shapes.
The Crème Filling Cobot Solution can easily be integrated with any existing production set up increasing the utilization of capacity, significantly reduces repetitive physical tasks. Thereby The Crème Filling Cobot Solution frees up resources and adds value.
The Crème Filling Cobot Solution is modular and scalable and can be installed in both a moveable and fixed version. Due to the build-in-stop-function and the integrated sensors The Crème Filling Cobot Solution operate smoothly and safely in busy environments.
The Crème Filling Cobot Solution is ideal for any production set up where high mix low volume, efficiency, a high hygienic level, stable product quality, compliance and delivery reliability are essential parameters.
